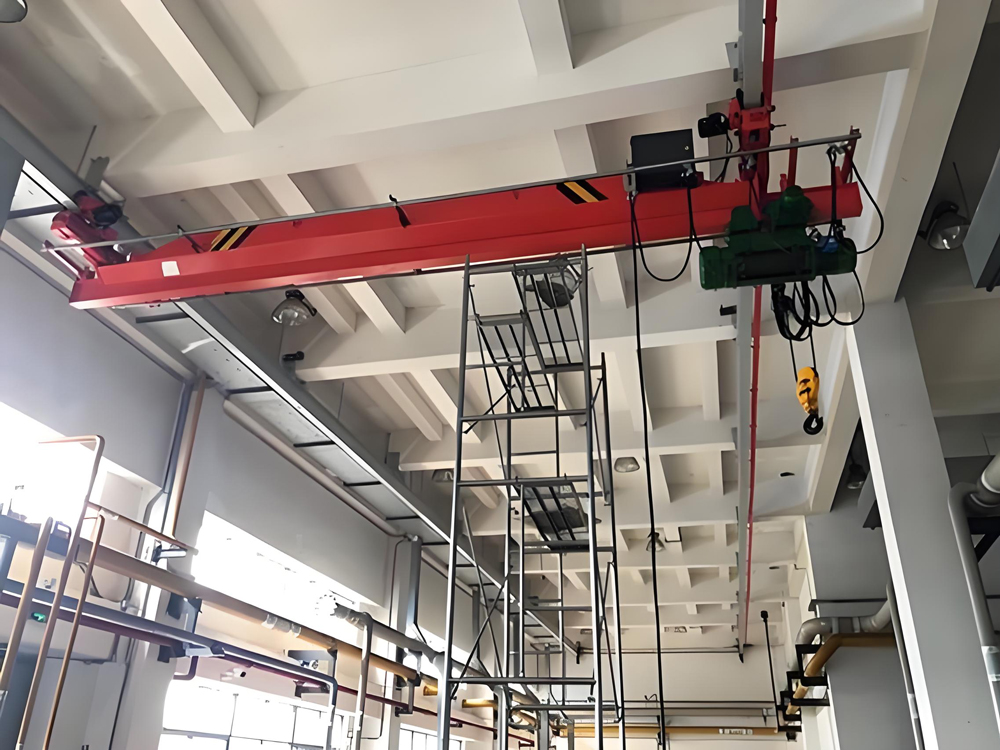

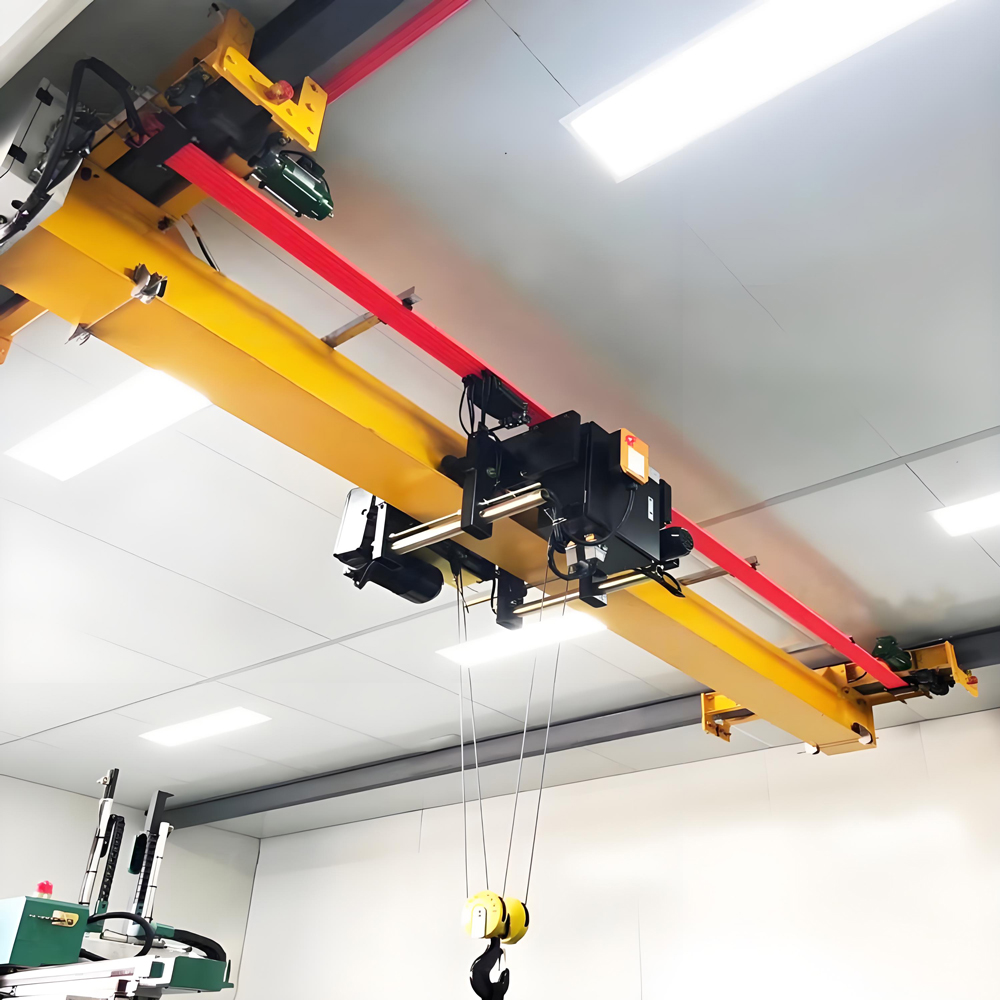

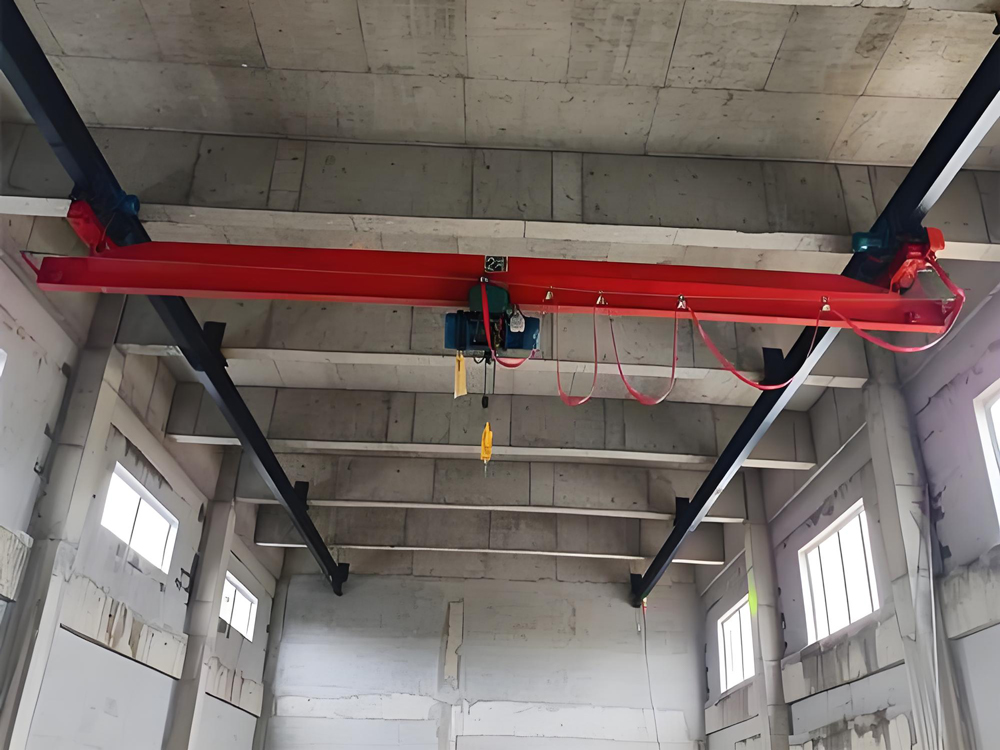

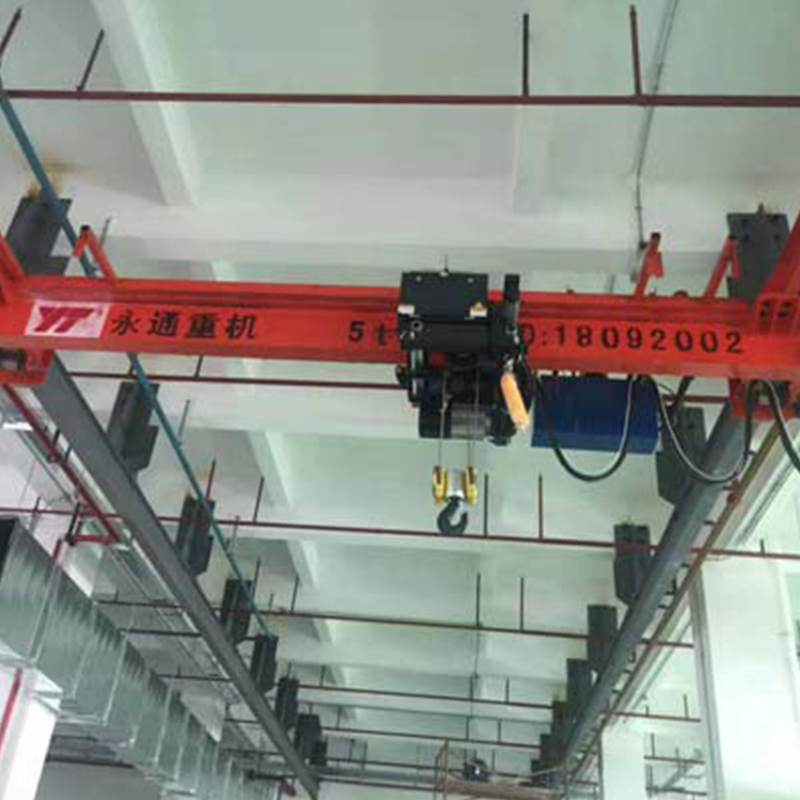

The LX Underhung Single Girder Suspension Crane is a versatile and efficient lifting solution designed for light to moderate material handling tasks. It features a single girder structure that runs on an underslung track, making it ideal for applications where overhead space is limited.
Single Girder Design: The crane uses a single horizontal beam supported by an underslung system, which reduces the overall height requirement compared to traditional overhead cranes.
Lifting Capacity: Typically ranges from 0.5 tons to 10 tons, catering to various industrial needs such as assembly lines and warehouses.
Span and Lifting Height: The span generally varies from 3 meters to 22.5 meters, with lifting heights ranging from 6 meters to 30 meters.
Speed Specifications:
Lifting Speed: Offers dual speeds, typically around 0.8/8 m/min.
Trolley Speed: Travels at speeds of up to 20 m/min or optionally up to 30 m/min.
Here are some detailed specifications for the LX Underhung Single Girder Suspension Crane:
| Parameter | Value |
|---|---|
| Lifting Capacity | 0.5 t - 10 t |
| Span | Up to 22.5 m |
| Lifting Height | Up to 30 m |
| Working Class | A3 - A5 |
| Control Method | Ground or Cab Control |
| Power Supply | Commonly AC380V, three-phase |
Assembly Lines
Warehouses
Workshops
Industrial facilities requiring precise material handling in confined spaces.
Space Optimization: Ideal for low-ceiling environments due to its underslung design.
2.Efficiency: Provides smooth operation with dual speed options for both lifting and traveling motions.
3.Cost-effectiveness: Offers a cost-efficient solution compared to more complex systems like double girder cranes.
4.Customization Options: Can be tailored according to specific operational needs.
The LX Underhung Single Girder Suspension Crane is a valuable asset in industries where space efficiency and precision are crucial factors in material handling operations
Yes, because the working condition are different, all our products are customized depending on detail requirement! So all your products will be specially designed by our engineers according to your workshop conditions.
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,or you can let some third-partied to do the inspection for you.
Yes, we have. But we only have the standard-sized products, if you need customized products, then it will take some time to manufacture it.
It depends on your products quantity and products data you given, but we will try our best to deliver your products as soon as possible.
We will sent you the detail installation manual or if you are needing, our installation engineers can come to your workshop to guide the installation.
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
