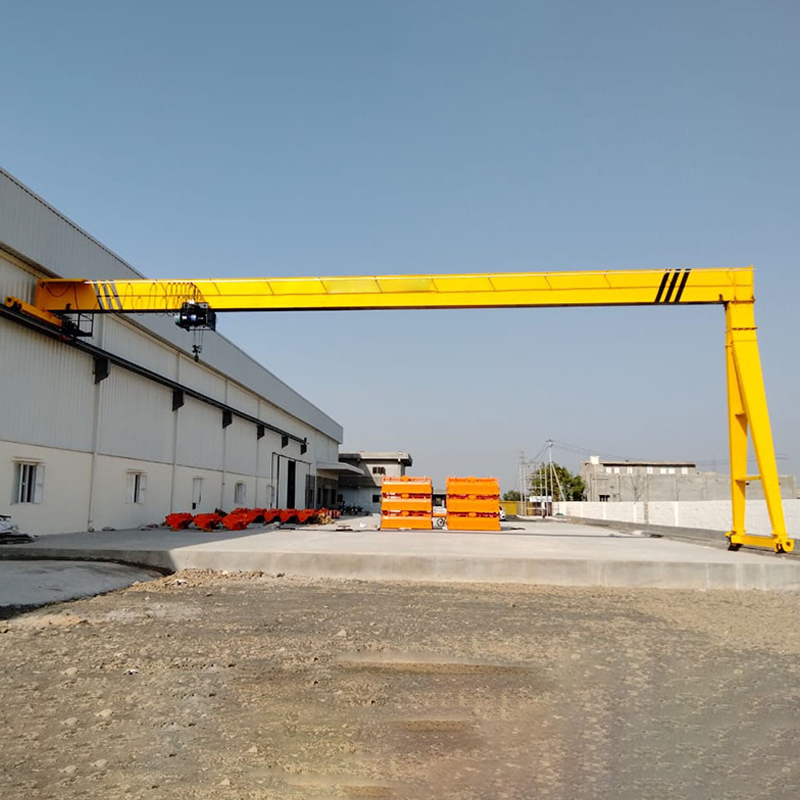

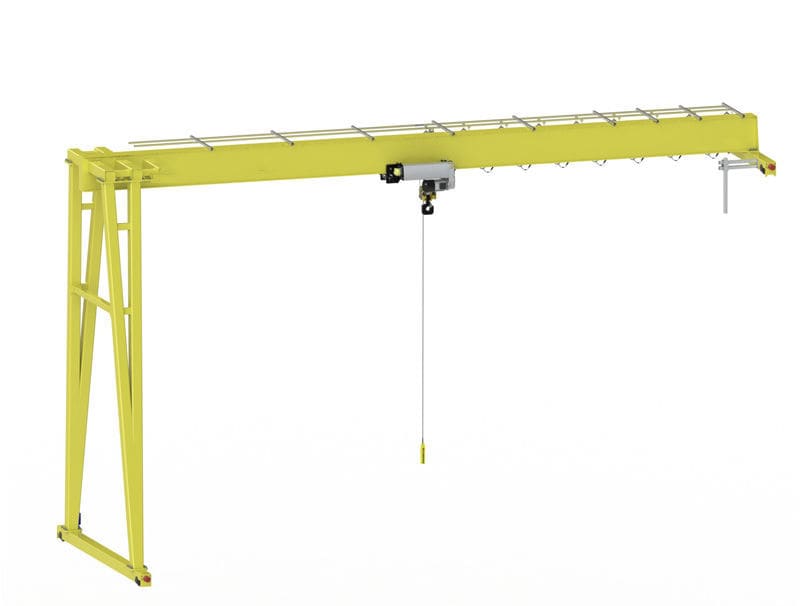

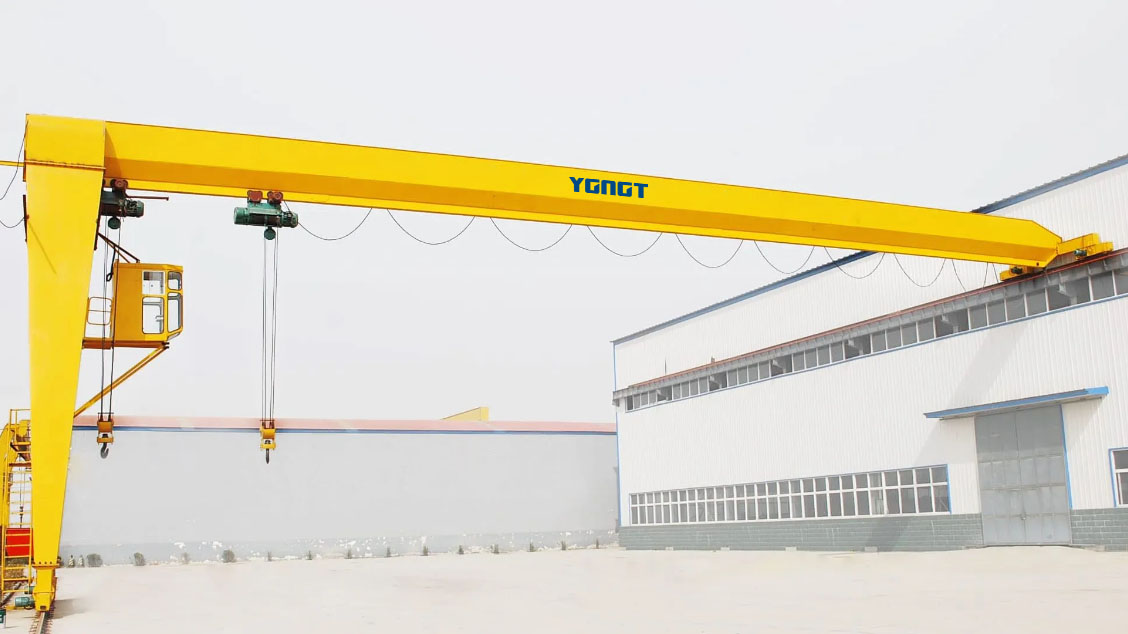

The MHB Single Girder Semi-Gantry Crane is a versatile and efficient lifting solution designed for various industrial applications. This crane features a single horizontal girder supported on one side by vertical legs, while the other side runs on rails or tracks, allowing for flexible placement and operation in confined spaces.
Single Girder Design: The crane utilizes a single girder structure, which is lighter and more economical than double girder designs while still providing sufficient strength for moderate lifting tasks.
Load Capacity: Typically available in capacities ranging from 1 ton to 20 tons, making it suitable for light to moderate lifting applications.
Span and Lifting Height: The span generally ranges from 5 to 20 meters, with customizable lifting heights up to 12 meters, depending on specific operational requirements.
Speed Specifications:
Lifting Speed: Varies from approximately 0.33 to 8 m/min, depending on the model and configuration.
Trolley Speed: Usually around 20 m/min.
Crane Speed: Also typically around 20 m/min.
Here are some detailed specifications for the MHB Single Girder Semi-Gantry Crane:
| Parameter | Value |
|---|---|
| Lifting Capacity | 1 to 20 tons |
| Span | 5 to 20 meters |
| Lifting Height | Up to 12 meters |
| Lifting Speed | 0.33 to 8 m/min |
| Trolley Speed | Up to 20 m/min |
| Crane Speed | Up to 20 m/min |
| Work Duty | A3 - A4 |
| Ambient Temperature | -20°C to +40°C |
The MHB Single Girder Semi-Gantry Crane is ideal for:
Warehouses: Efficiently moving goods and materials within storage facilities.
Manufacturing: Assisting in assembly lines and transporting components between different workstations.
Mechanical Processing Workshops: Used for handling machinery parts and tools.
Outdoor Applications: Suitable for loading and unloading operations in open areas.
Cost-Effective Solution: The single girder design reduces material costs while maintaining sufficient strength for many applications.
Space Optimization: Its semi-gantry design allows operation in confined spaces, making it suitable for facilities with limited room.
Flexibility: Can be installed beneath existing overhead cranes, enhancing productivity without obstructing operations.
Ease of Maintenance: Designed for straightforward maintenance procedures, reducing downtime and operational costs.
The MHB Single Girder Semi-Gantry Crane is an effective solution for industries requiring reliable and efficient material handling capabilities. Its combination of a single girder structure with versatile operational features makes it an excellent choice for various applications in manufacturing, warehousing, and outdoor environments.
Yes, because the working condition are different, all our products are customized depending on detail requirement! So all your products will be specially designed by our engineers according to your workshop conditions.
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,or you can let some third-partied to do the inspection for you.
Yes, we have. But we only have the standard-sized products, if you need customized products, then it will take some time to manufacture it.
It depends on your products quantity and products data you given, but we will try our best to deliver your products as soon as possible.
We will sent you the detail installation manual or if you are needing, our installation engineers can come to your workshop to guide the installation.
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
