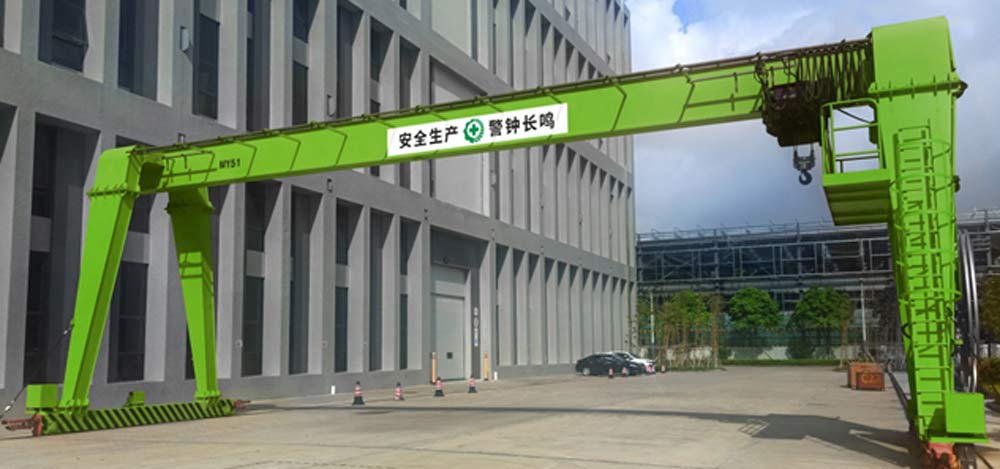

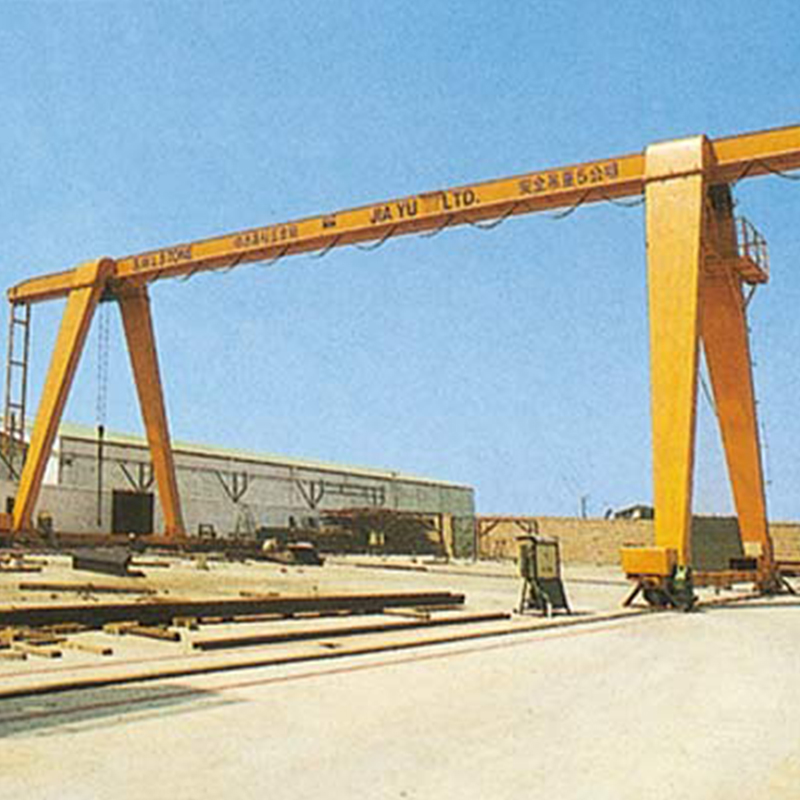

The MH single girder gantry crane is a straightforward and user-friendly lifting solution, ideal for applications where the frequency of lifting operations is low or the number of lifts at rated capacity is minimal. This makes it particularly suitable for environments such as factories, storage yards, docks, and hydropower stations.
Design and construction

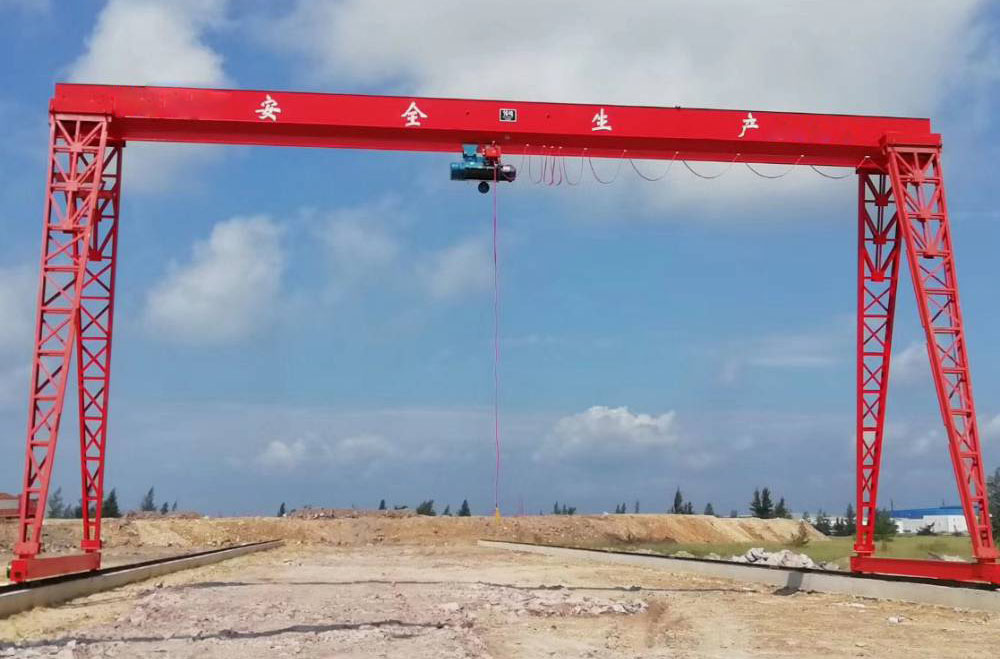

The main beam adopts a single beam structure, usually box type or truss type, with light weight, strong rigidity, low headroom characteristics. The electric hoist is installed under or on one side of the main beam to maximize the service space of the hook and reduce the height of the plant.

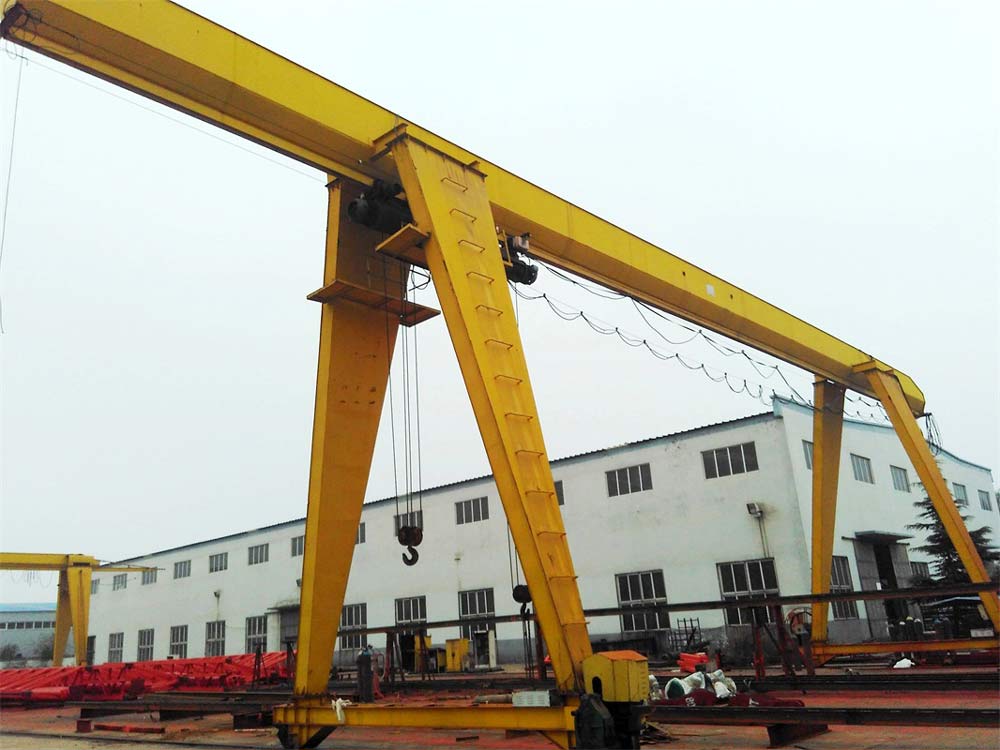

Leg types include L, C, etc., compact structure, convenient installation, suitable for indoor and outdoor sites.
Core advantage
Lightweight design: The welding process adopts robot automatic welding, CNC machining to ensure high precision and reduce deformation.
Low noise and stability: Equipped with variable frequency speed control system (optional), soft start and stop smooth, reduce impact.
Safe and reliable: anti-swing system, anti-derailment protection device, electrical components such as Siemens, SEW and other brands to ensure durability.
Basic parameter
Rated load: usually 1~50 tons, some non-standard customization can reach higher tonnage.
Span: Standard range 7.5~30 meters, support on-demand customization.
Lifting height: 6~30 meters, adapt to different operation requirements.
Work level: , depending on the usage scenario and load frequency.
Mode of operation
Support ground operation (push-button control), remote operation, or a combination of both, with optional cab for some models.
Environmental adaptability
Temperature range: Standard type is suitable for -25℃~+40℃, high temperature environment needs to be customized high temperature configuration (such as motor, cable).
Protection grade: Motor IP55, insulation grade F/H, suitable for dust, wet environment.
Warehouse logistics: Used for material handling in the warehouse, especially suitable for low clearance plant.
Manufacturing: mechanical assembly, metal processing, stone factory (such as marble, granite lifting).

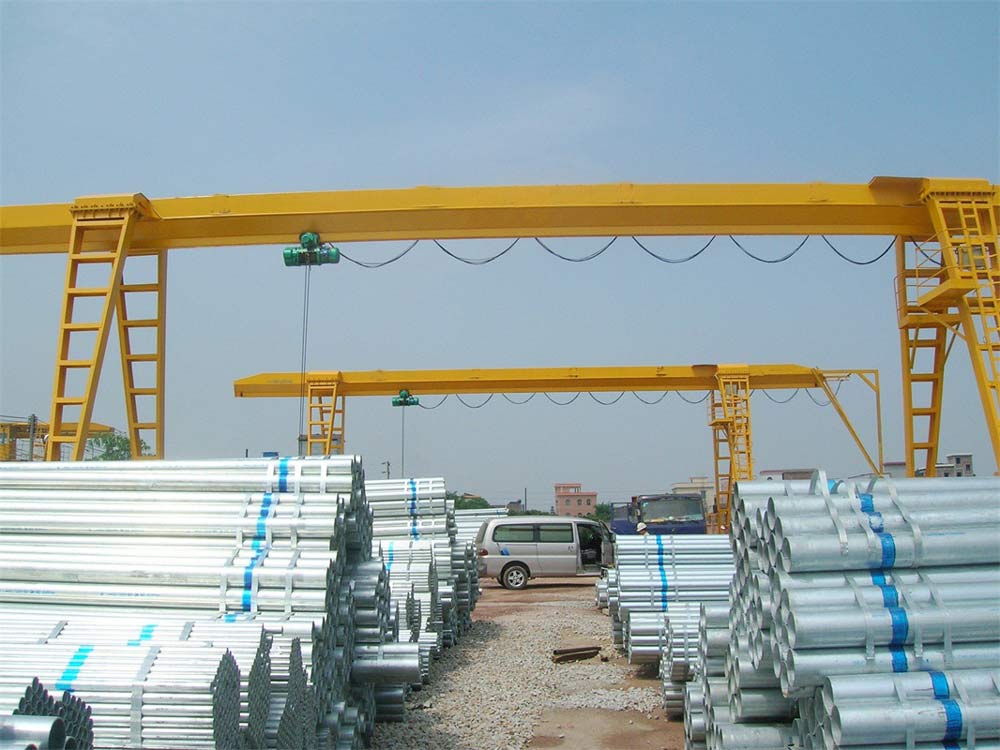

Outdoor venue: railway freight yard, port storage yard and other large-span open-air operations.
Special requirements: precision positioning (such as large parts assembly) or explosion-proof sites (need to customize explosion-proof configuration).
The MH single girder gantry crane offers an economical and reliable material handling solution for sites that do not require continuous heavy lifting but need robust performance when called upon. Its ease of use and adaptability make it a valuable asset in less demanding industrial settings.
Yes, because the working condition are different, all our products are customized depending on detail requirement! So all your products will be specially designed by our engineers according to your workshop conditions.
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,or you can let some third-partied to do the inspection for you.
Yes, we have. But we only have the standard-sized products, if you need customized products, then it will take some time to manufacture it.
It depends on your products quantity and products data you given, but we will try our best to deliver your products as soon as possible.
We will sent you the detail installation manual or if you are needing, our installation engineers can come to your workshop to guide the installation.
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
