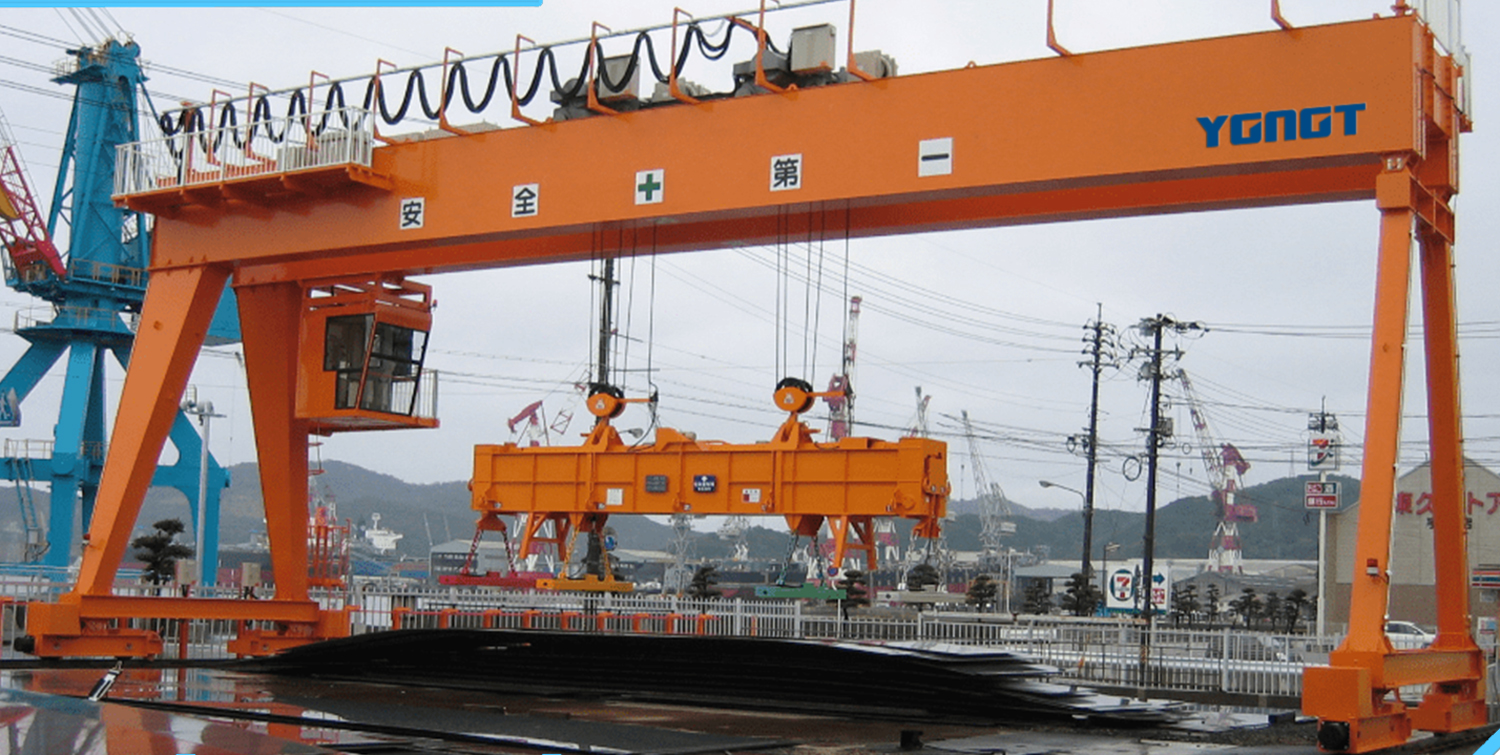

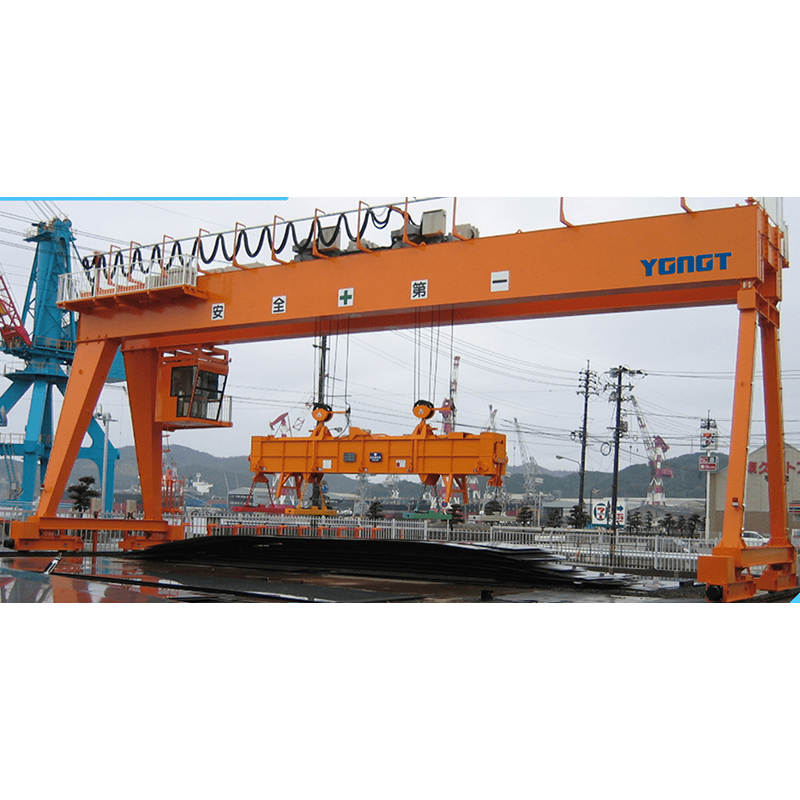

The MA Electromagnetic Gantry Crane is a specialized crane designed for lifting and moving ferrous materials using an electromagnetic system. It is commonly used in industries such as steel processing, metal recycling, and manufacturing for handling steel plates, scrap metal, and other magnetic materials.
Electromagnetic Lifting: Equipped with an electromagnet, this crane can lift and transport ferrous materials by generating a strong magnetic field. The electromagnet can be controlled to quickly attach to and release loads, improving efficiency and safety.
Gantry Design: The gantry design allows the crane to operate on rails at ground level, making it suitable for outdoor applications and large working areas.
Lifting Capacity: Typically, these cranes have a lifting capacity ranging from 5 to 32 tons, which includes the weight of the electromagnet. Some heavy-duty models can lift nearly 100 tons.
Span and Lifting Height: The span usually ranges from 7.5 to 35.5 meters, with lifting heights between 5 and 30 meters, offering flexibility for various operational needs.
Working Class: MA Electromagnetic Gantry Cranes are typically classified under working classes A5 to A6, indicating moderate to heavy usage.
| Parameter | Value |
|---|---|
| Lifting Capacity | 5 to 32 tons |
| Span | 7.5 to 35.5 meters |
| Lifting Height | 5 to 30 meters |
| Working Class | A5 - A6 |
| Power Supply | 380V, 50Hz, 3-Phase |
| Control Method | Cabin/Remote/Pendant |
| Main Electric Parts | Schneider/ABB |

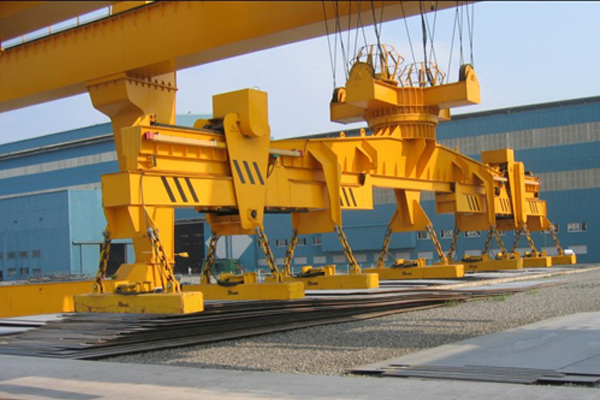

Steel Mills: For handling steel sheets, plates, coils, and bars.

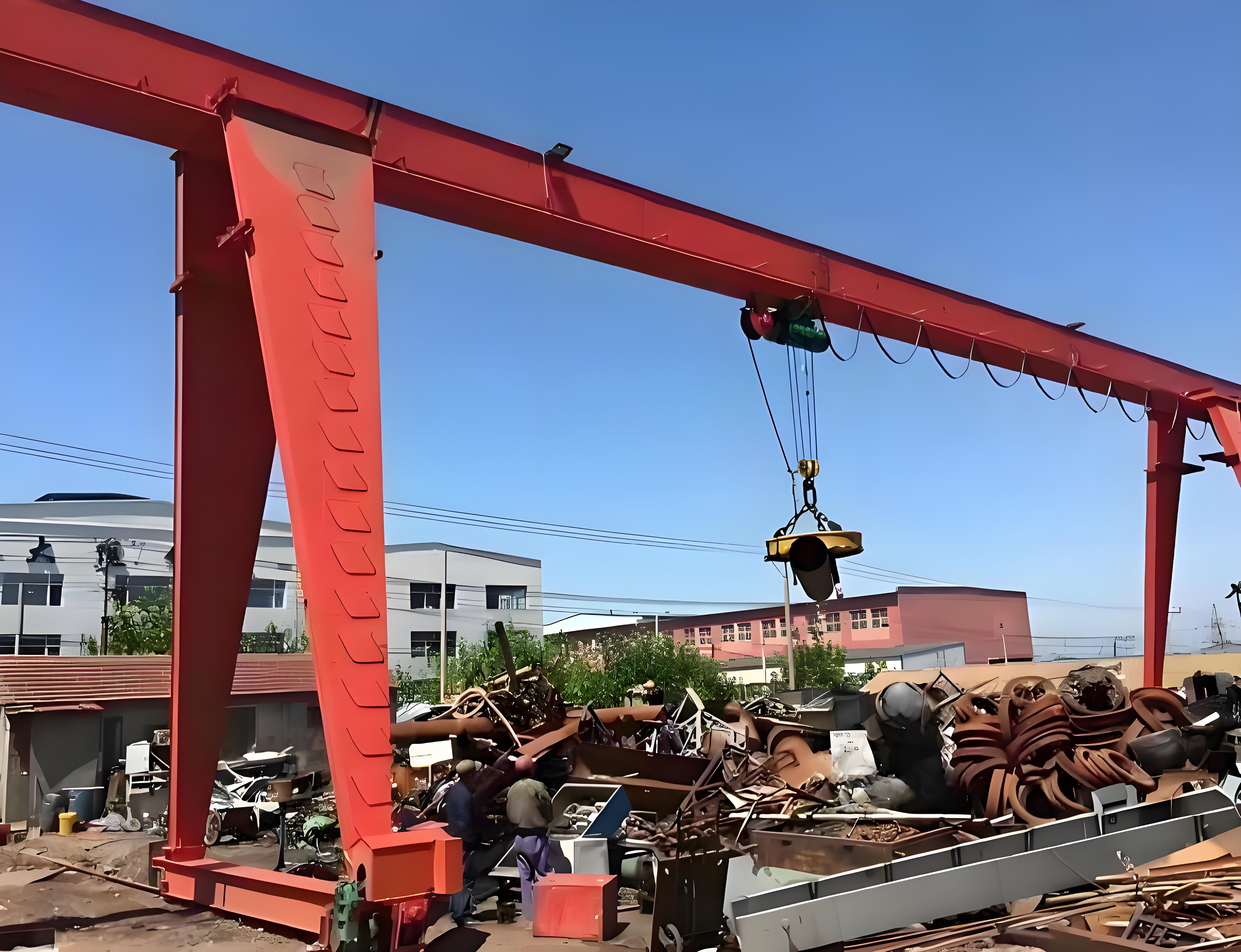

Recycling Plants: Efficiently sorts and moves ferrous scrap metal.
Metal Processing and Fabrication: Lifts and transports metal sheets, coils, and plates.
Warehouses and Storage: Manages and stores metal products efficiently.
Port Terminals: Loads, unloads, and moves iron or steel blocks and cylinders.
Increased Efficiency: Magnetic cranes can lift heavy and irregularly shaped objects easily, reducing the need for manual sorting.
Enhanced Safety: Reduces the risk of accidents when handling hot, sharp, or dangerous materials because it doesn't require direct contact.
Customization: Can be customized for specific industry needs, including hazardous environments.
Durability: Designed for heavy-duty use, ensuring a long service life.

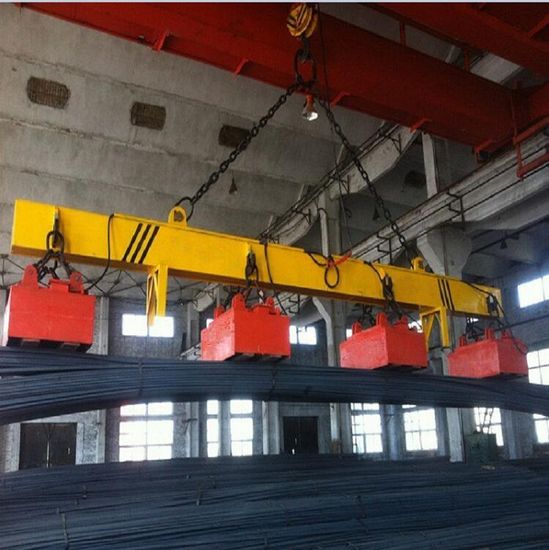

The MA Electromagnetic Gantry Crane uses an electromagnet to generate a magnetic field, allowing it to lift ferrous materials. When electric current flows through the coil, it magnetizes the core, enabling it to lift steel plates, bars, pipes, and scrap metal. Operators can control the current to attach and release materials as needed.
The MA Electromagnetic Gantry Crane is a versatile and efficient solution for handling ferrous materials in various industrial applications. Its ability to lift heavy loads and improve safety makes it a valuable asset in steel mills, recycling plants, and other similar environments.
Yes, because the working condition are different, all our products are customized depending on detail requirement! So all your products will be specially designed by our engineers according to your workshop conditions.
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,or you can let some third-partied to do the inspection for you.
Yes, we have. But we only have the standard-sized products, if you need customized products, then it will take some time to manufacture it.
It depends on your products quantity and products data you given, but we will try our best to deliver your products as soon as possible.
We will sent you the detail installation manual or if you are needing, our installation engineers can come to your workshop to guide the installation.
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
