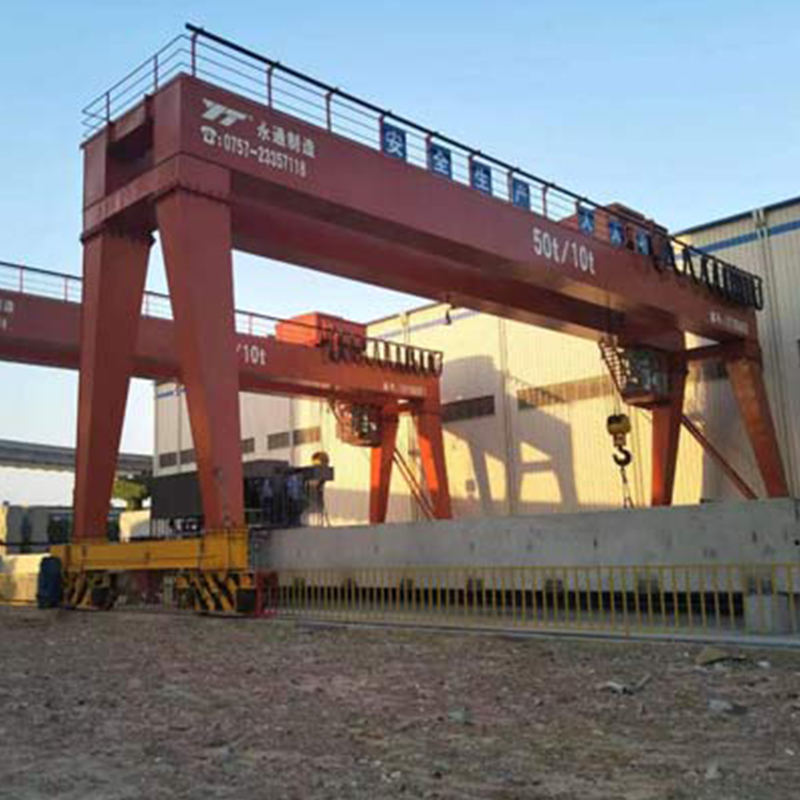

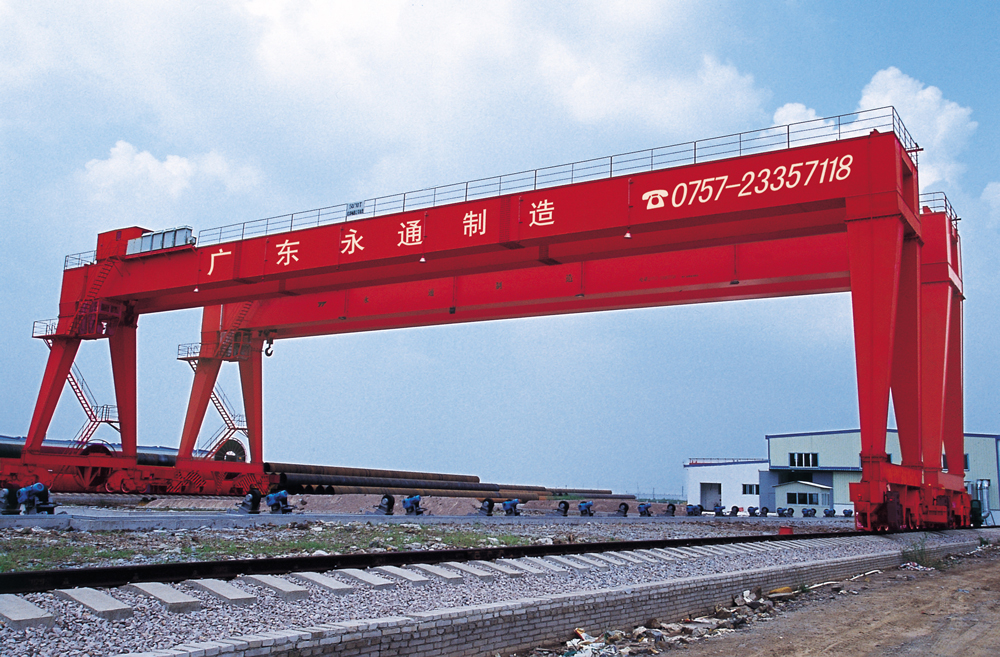

The MHQ Double Hook electric hoist gantry crane is a specialized piece of lifting equipment designed for various industrial applications. Its structure includes several key components:
Gantry: This is the main framework of the crane, which supports the entire system and allows for movement across the work area. The gantry in this model consists of two primary box beams that provide structural integrity and support for lifting operations. Additionally, there is an A-shaped leg on one side, which helps to stabilize the crane. The upper arch frame, lower beam, and upper beam complete the gantry's construction, ensuring stability and rigidity.
Large Vehicle Running Mechanism: This mechanism enables the crane to move along the ground or rails. It typically includes wheels, axles, and a drive system that powers the movement of the entire gantry structure. This allows the crane to cover a larger operational area, making it versatile for different tasks within a facility.
Electric Hoist Trolley Device: Suspended from the gantry, this device is equipped with an electric hoist that can lift and lower loads. The trolley moves horizontally along the gantry's length, allowing precise positioning of the load. Depending on the configuration, the hoist may be capable of handling different types of loads and operating at various speeds.
Gantry Conducting Device: This refers to the system used to supply power to the moving parts of the crane. It ensures that electricity is safely and efficiently delivered to the electric hoist and other electrical components. Commonly, this could involve the use of conductor lines or sliding contacts, like those described in reference, where a set of brushes contact a conductive rail to transfer power as the crane moves.
Electrical Equipment: This encompasses all the control systems, motors, wiring, and safety devices necessary for the operation of the crane. It includes features such as emergency stop buttons, limit switches, and variable frequency drives that allow for controlled acceleration and deceleration of the crane's movements.
The MHQ type electric hoist gantry crane is thus a comprehensive system that integrates robust mechanical structures with advanced electrical engineering to provide reliable and efficient material handling capabilities in diverse industrial settings. Its design allows for customization according to specific needs, such as working environments, load capacities, and operational requirements.
Yes, because the working condition are different, all our products are customized depending on detail requirement! So all your products will be specially designed by our engineers according to your workshop conditions.
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,or you can let some third-partied to do the inspection for you.
Yes, we have. But we only have the standard-sized products, if you need customized products, then it will take some time to manufacture it.
It depends on your products quantity and products data you given, but we will try our best to deliver your products as soon as possible.
We will sent you the detail installation manual or if you are needing, our installation engineers can come to your workshop to guide the installation.
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
