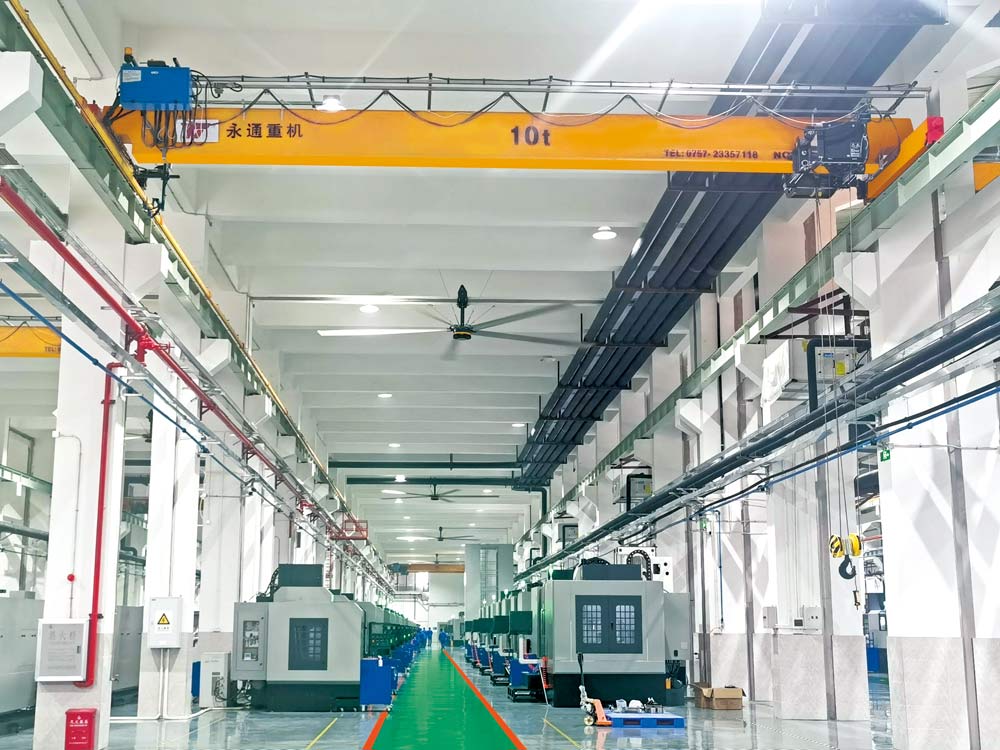

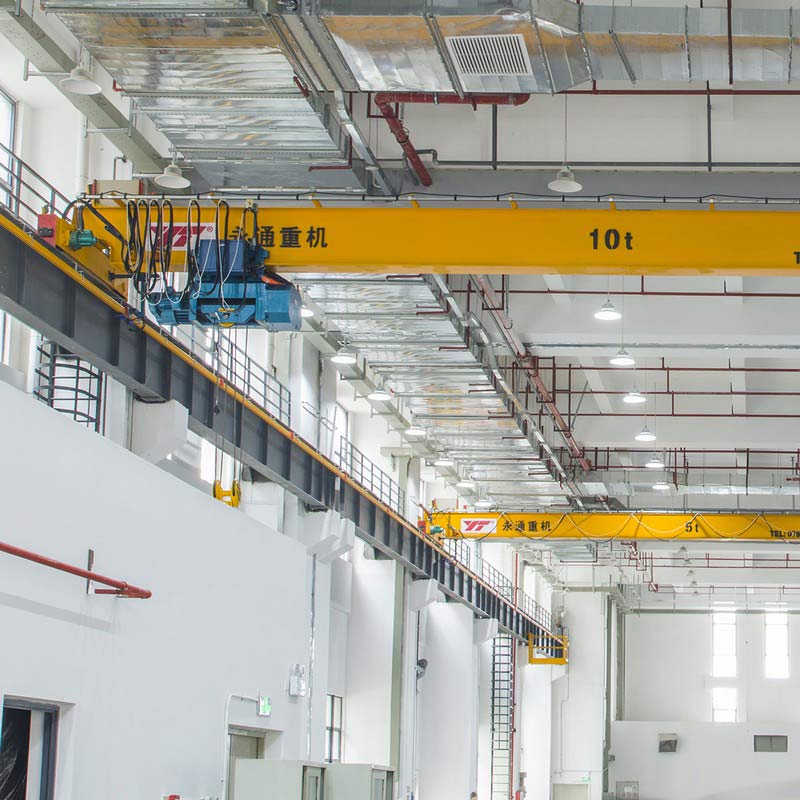

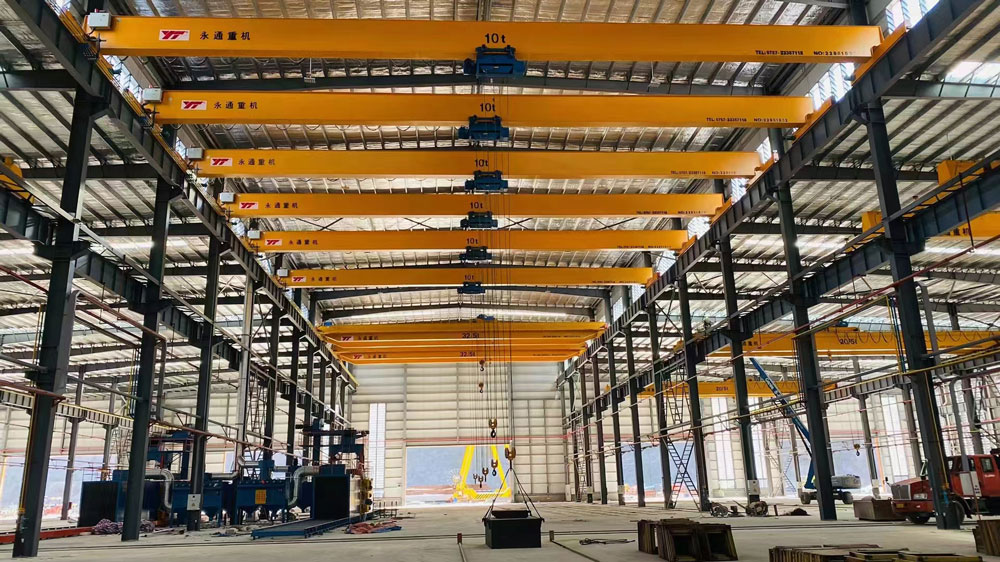

The Electric Hoist Single Girder Overhead Crane is a lightweight, cost-effective lifting solution designed for light to medium-duty material handling in industrial and warehouse settings. Combining a streamlined design with advanced hoisting technology, it optimizes space and efficiency while adhering to strict safety standards. Below is a detailed breakdown of its features, applications, and specifications:
Compact Design:
Ideal for facilities with limited vertical space, maximizing lifting height (up to 60 meters in some models).
Single girder structure reduces weight and installation costs compared to double girder cranes.

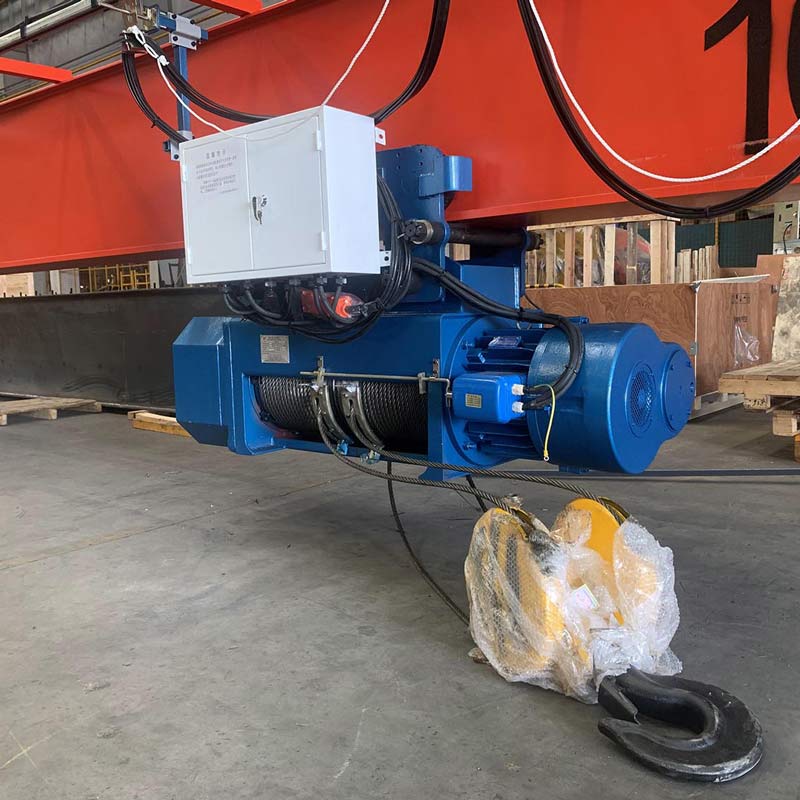

Electric Hoist System:
Lifting capacities: 0.5–10 tons (standard), with higher capacities up to 15 tons for custom models.
Dual-speed lifting: Speeds range from 0.33 m/min (precision tasks) to 10 m/min (general use).
Safety & Control:
Overload protection, limit switches, and emergency stops.
Variable Frequency Drives (VFDs) for smooth acceleration and precise positioning.
Customization:
Adjustable spans (3–35 meters), lifting heights, and optional features like LED lighting or weighing systems.
| Parameter | Range/Details |
|---|---|
| Lifting Capacity | 0.5–10 tons |
| Span | 3–35 meters |
| Lifting Height | 3–60 meters |
| Lifting Speed | 0.33–10 m/min (dual-speed options) |
| Trolley Speed | 2–40 m/min |
| Crane Travel Speed | 20–40 m/min |
| Work Duty Class | A3–A6 (light to medium duty) |
| Power Supply | 220V/380V/480V, 50/60Hz, 3-phase |
Manufacturing: Assembly lines for automotive, electronics, and machinery.
Warehouses: Efficient stacking and retrieval of goods.
Steel Plants: Handling coils, molds, and light machinery.
Power Stations: Maintenance of turbines and generators.
Ports & Logistics: Loading/unloading cargo in confined spaces.
Cost Efficiency:
Lower installation and maintenance costs compared to double girder cranes.
Space Optimization:
Compact design suits low-clearance facilities.
Energy Savings:
VFDs reduce power consumption and wear on mechanical parts.
Safety Compliance:
Complies with FEM, DIN, and ISO standards, featuring anti-collision systems and thermal protection.
Customization:
Configurable with explosion-proof components, twin hoists, or synchronized controls for long loads.
Alarms & Sensors: Sound/light alarms, photoelectric sensors, and cross-limit switches prevent over-travel.
Specialized Attachments: Magnetic hooks, grabs, or custom end effectors for specific loads
Weighing Systems: Integrated load indicators for precise weight monitoring.
Nante Crane: High-quality Q355B steel girders and advanced hoist technology.
EOT Crane Kit: Budget-friendly MH models with A3/A4 duty classes.
OMIS: Raised/lowered configurations for architectural constraints.
The Electric Hoist Single Girder Overhead Crane is a versatile, cost-effective solution for industries requiring efficient material handling in space-constrained environments. Its adaptability, safety features, and energy efficiency make it ideal for workshops, warehouses, and light industrial applications.
