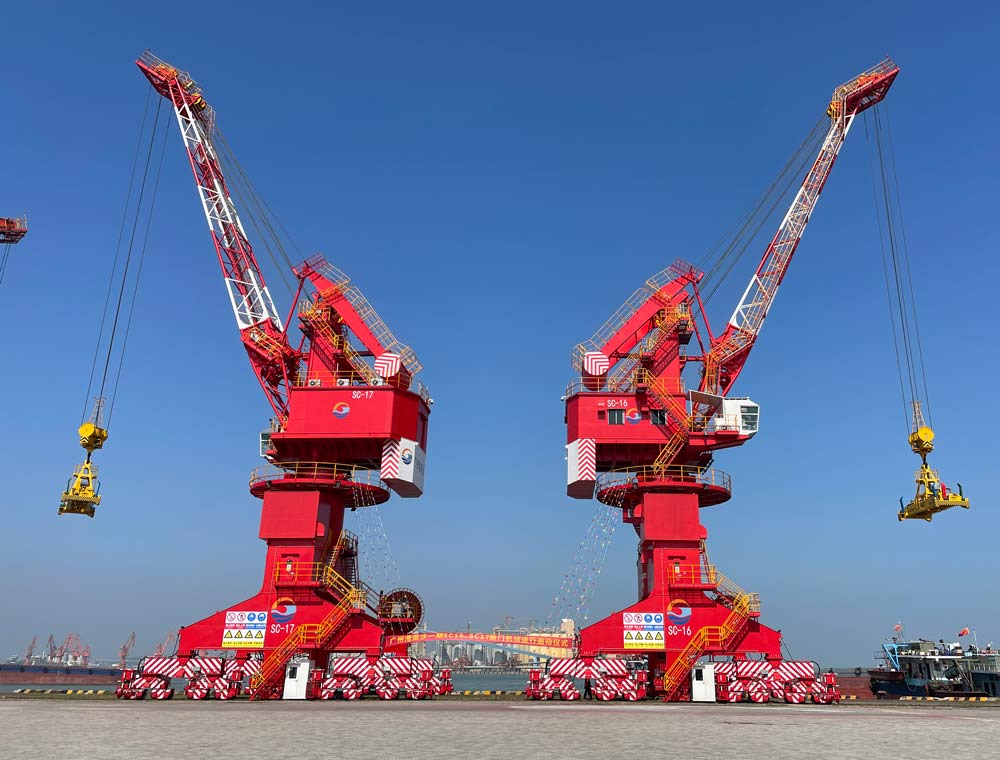

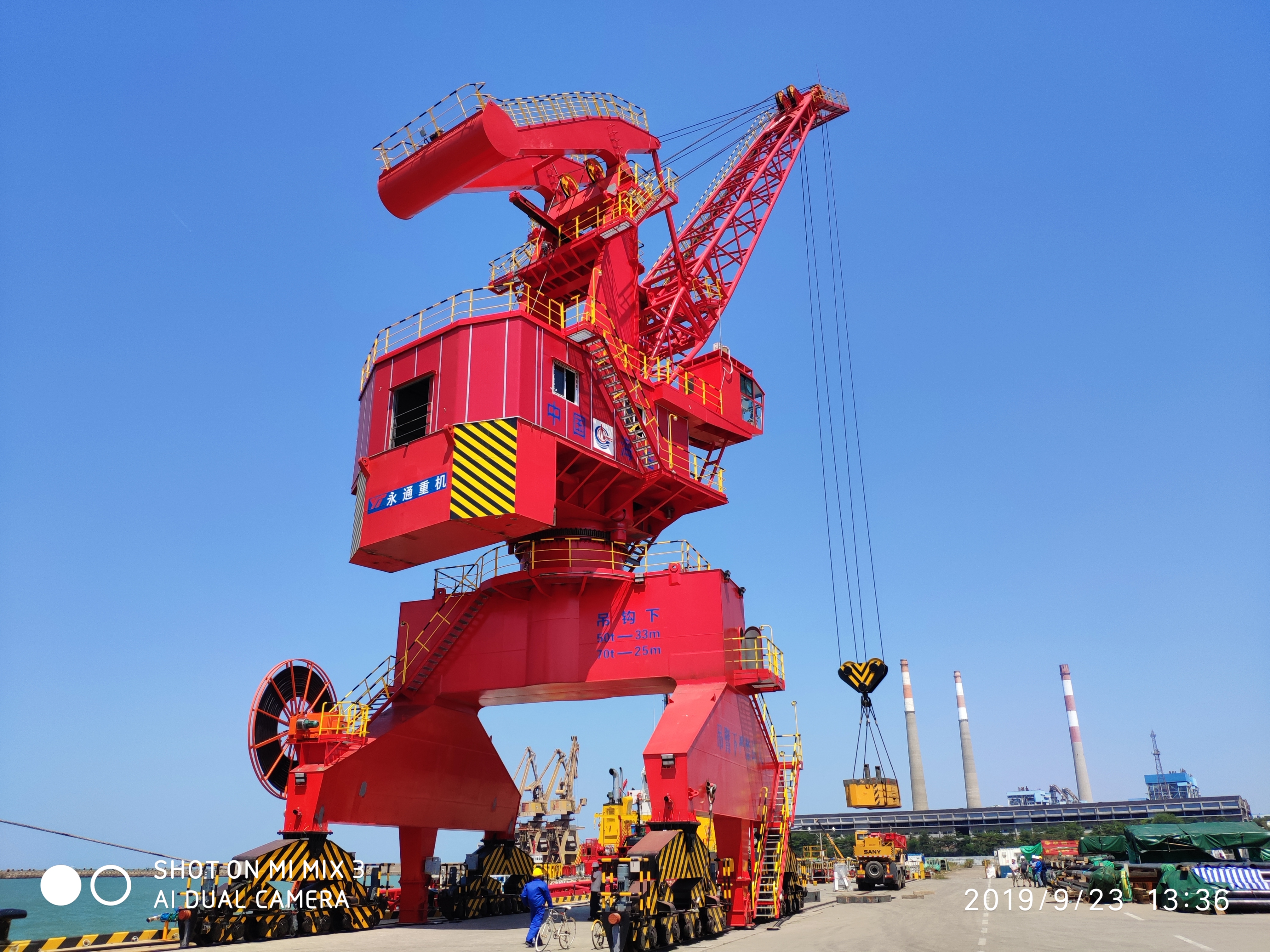

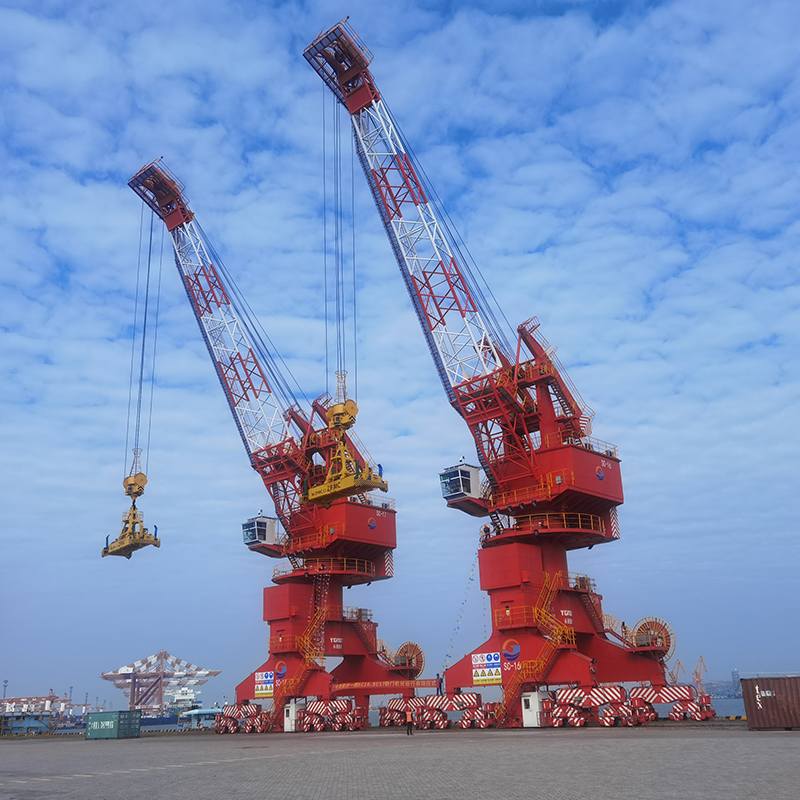

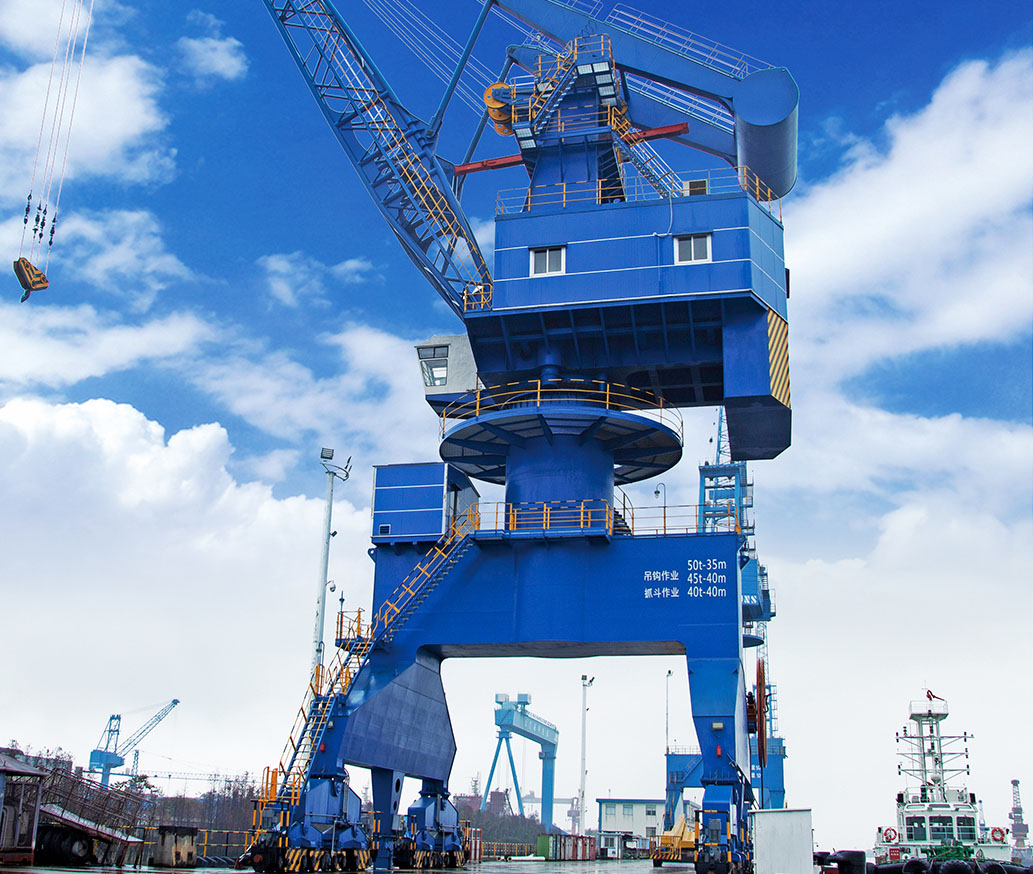

A Jib Portal Slewing Mobile Harbour Crane is a versatile and efficient lifting solution used in port and terminal operations. It combines the flexibility of a mobile harbour crane with the structural benefits of a portal crane, allowing for efficient handling of various cargo types.
Portal Structure: Features a portal frame that supports the crane's boom or jib, providing stability and lifting capacity.
Slewing Mechanism: Allows for 360-degree rotation, enabling the crane to access different areas of the terminal.
Lifting Capacity: Typically ranges from 5 tons to 200 tons, depending on the specific model and application requirements.
Jib Length and Working Range: The jib length can vary, with working ranges often up to 75° angle and lifting heights from 30 to 55 meters above the track.
Control Methods: Operates via PLC linkage and remote control systems, offering flexibility in operation.
| Parameter | Value |
|---|---|
| Lifting Capacity | 5 to 200 tons |
| Jib Length | Customizable |
| Working Range | Up to 75° angle |
| Lifting Height | 30-55 meters above track |
| Slewing Speed | Up to 1.5 rpm |
| Control Method | PLC Linkage & Remote Control |
| Power Supply | Flexible cable or cable reel |
Port Facilities: Used for loading and unloading cargo from ships, including containers, bulk materials, and project cargo.
Terminals: Essential for handling various types of cargo efficiently, enhancing terminal capacity.
Construction Sites: Useful for lifting and placing heavy construction materials.
Logistics and Shipping: Facilitates the movement of goods in logistics and shipping operations.
Operational Flexibility: Offers 360-degree slewing capability and customizable jib lengths to access different areas of the terminal.
High Lifting Capacities: Handles heavy loads efficiently, making it suitable for bulk and project cargo.
Space Optimization: The portal structure allows for efficient use of space in terminals with limited room.
Customization Options: Can be tailored with specialized attachments and control systems for specific applications.
The Jib Portal Slewing Mobile Harbour Crane is a valuable asset in port operations due to its flexibility, high lifting capacity, and ability to optimize space usage.
Yes, because the working condition are different, all our products are customized depending on detail requirement! So all your products will be specially designed by our engineers according to your workshop conditions.
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,or you can let some third-partied to do the inspection for you.
Yes, we have. But we only have the standard-sized products, if you need customized products, then it will take some time to manufacture it.
It depends on your products quantity and products data you given, but we will try our best to deliver your products as soon as possible.
We will sent you the detail installation manual or if you are needing, our installation engineers can come to your workshop to guide the installation.
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
