The QA Double Girder Overhead Crane with Electromagnetic Hook is a specialized lifting solution designed for efficient and safe handling of ferrous materials in heavy-duty industrial environments. Equipped with a powerful electromagnet, it eliminates the need for hooks or chains, making it ideal for steel mills, scrap yards, and logistics hubs. Below is a detailed breakdown of its features, applications, and technical specifications:
Electromagnetic Lifting System:
Replaces traditional hooks with detachable electromagnets for secure handling of steel scrap, coils, pipes, and plates.
Magnetic Retention: Maintains grip for 10–30 minutes, even during power interruptions.

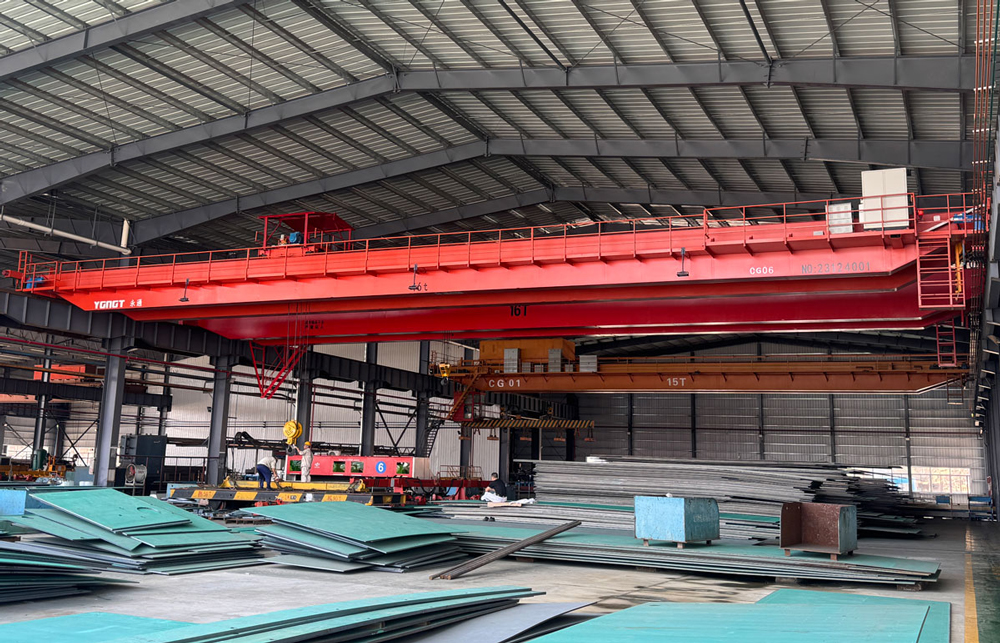

Double Girder Structure:
Robust box-type girders (Q235B/Q345B steel) provide stability for heavy loads (5–400 tons).
Span: 10.5–50 meters, customizable for industrial layouts.
Models & Configurations:
QC Series: Round electromagnet for steel scrap, ingots, and plates (5–32 tons).

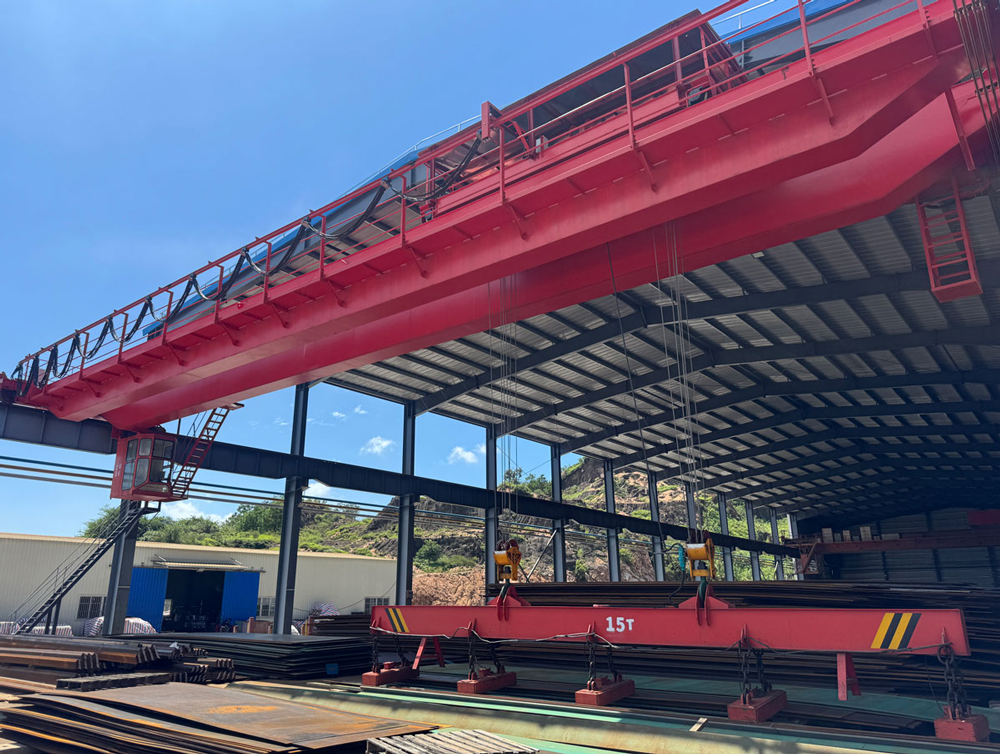

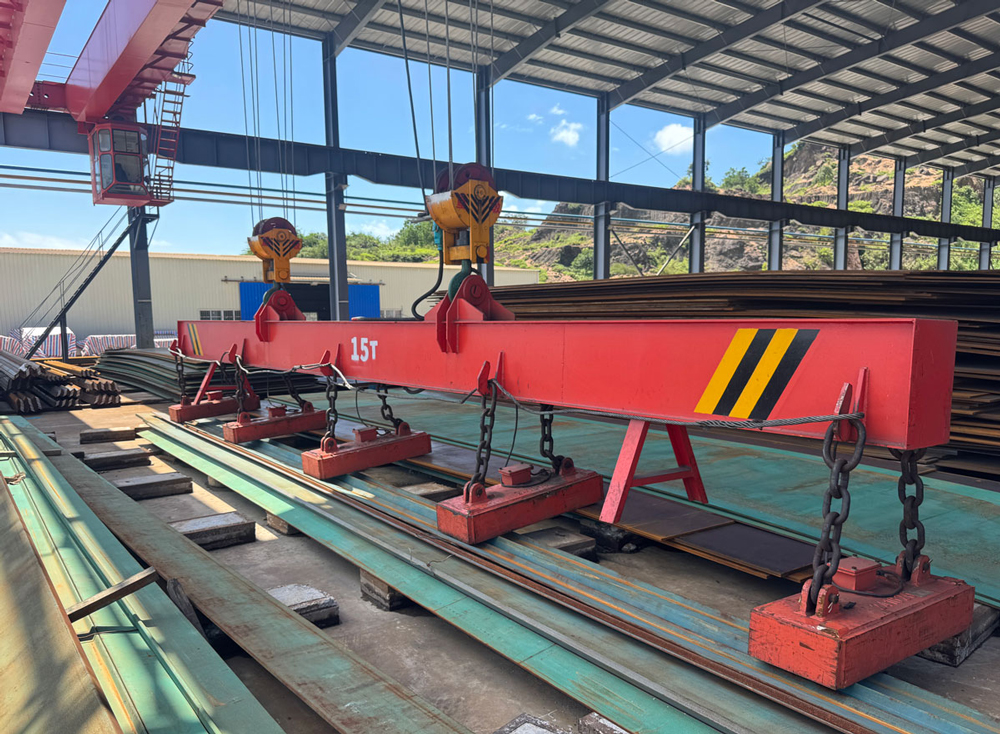

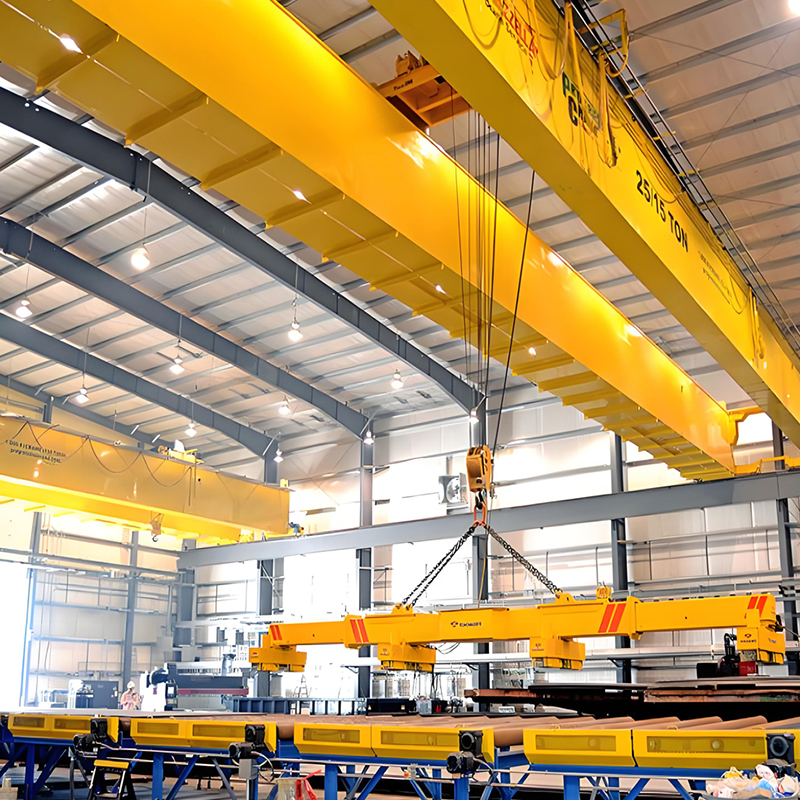

QL Series: Rotating hanging beam with multiple magnets for long materials (e.g., rebar, billets) (5+5 to 16+16 tons).
Double Trolley: Handles oversized loads (e.g., pipes, beams) with synchronized trolleys (2.5+2.5 to 200+200 tons).
Safety & Control:
Overload protection, anti-collision systems, and emergency stops.
Operated via pendant, remote, or cabin control.
| Parameter | Range/Details |
|---|---|
| Lifting Capacity | 5–100 tons (single/double trolley) |
| Span | 10.5–50 meters |
| Lifting Speed | 0.33–15.5 m/min (dual-speed for precision) |
| Trolley Speed | 2–63 m/min |
| Work Duty Class | A5–A7 (ISO 4301-1) |
| Ambient Temperature | -20°C to +60°C |
| Power Supply | 380V, 50Hz, 3-phase |
Steel Mills:
Handling coils, billets, and slabs in rolling mills.
Transporting scrap metal and molten steel.
Shipyards & Ports:
Loading/unloading steel pipes and ship components.
Scrap Yards & Recycling:
Sorting and moving ferrous materials efficiently.
Construction & Logistics:
Lifting steel beams, plates, and bundled rebar.
Power Plants:
Maintenance of turbines and heavy machinery.
Safety: Eliminates manual securing of loads, reducing accident risks.
Efficiency: Faster loading/unloading compared to hooks or chains.
Customization:
Wave-shaped magnetic poles for steel pipe bundles.
Adjustable spans, speeds, and lifting heights.
Cost Savings: Reduced labor and energy consumption.
| Model | Use Case | Key Feature |
|---|---|---|
| QC Series | Steel scrap, plates, ingots | Round electromagnet |
| QL Series | Long materials (rebar, pipes) | Rotating hanging beam |
| Double Trolley | Oversized loads | Synchronized lifting |
The Double Girder Electromagnetic Overhead Crane is indispensable in industries requiring precise, high-capacity handling of ferrous materials. Its combination of safety, efficiency, and adaptability makes it a critical asset for modern steel and logistics operations.
