The QD Overhead Crane is a heavy-duty double girder bridge crane designed for demanding industrial environments requiring high lifting capacities, frequent operation, and reliable performance. Below is a detailed breakdown of its features, specifications, and applications based on the search results:
Heavy-Duty Design:
Built for A5–A8 work duty classes (ISO 4301-1), suitable for extreme workloads and frequent use.
Box welded girders (Q235B/Q345B steel) ensure durability and stability.
High Lifting Capacity:

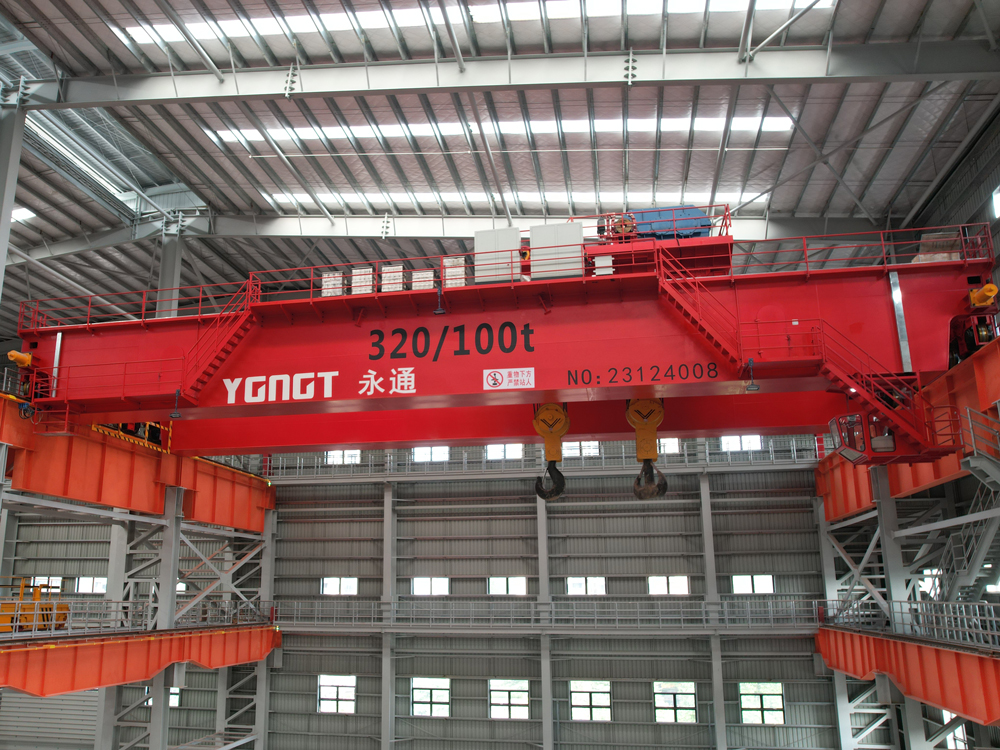

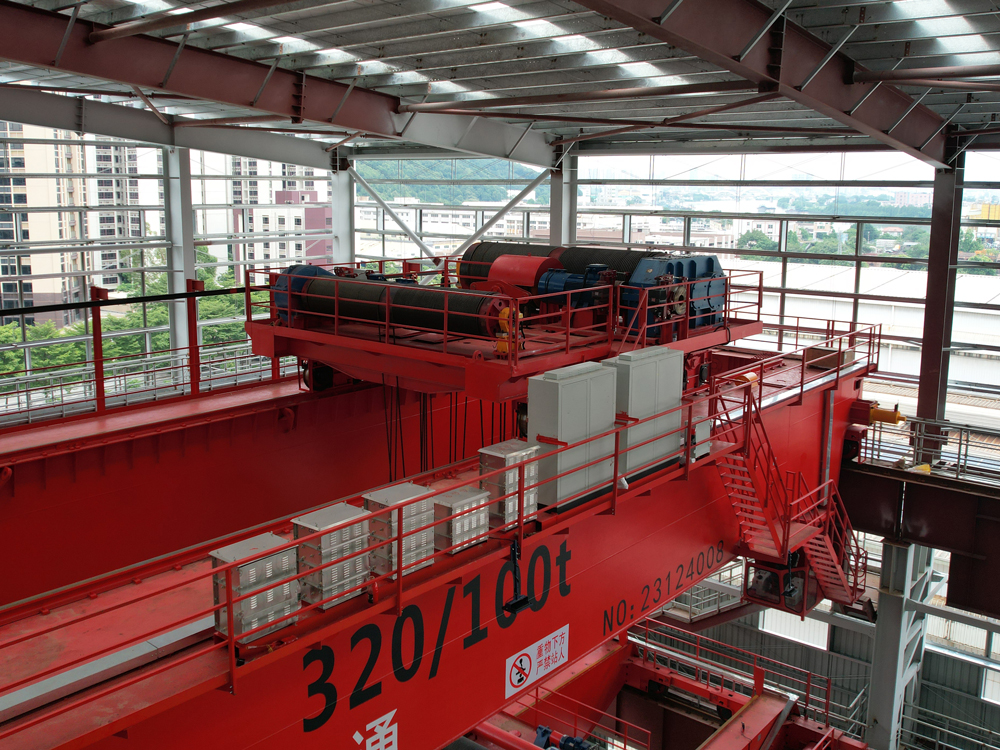

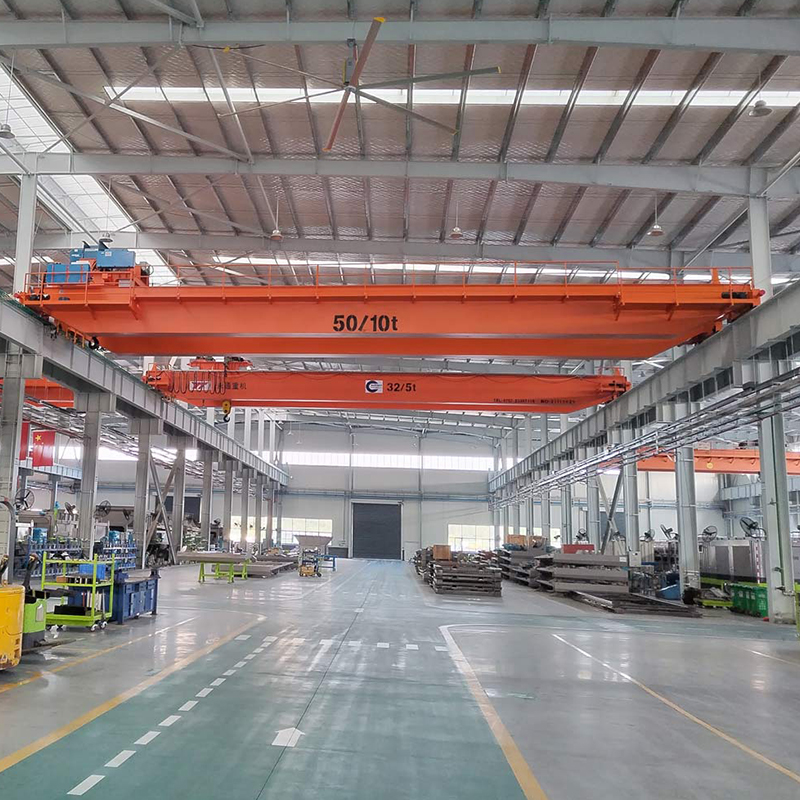

5–550 tons, with dual-hook configurations (e.g., 16/3.2t, 200/50t, 550/250t).
Customization:
Adjustable spans (10.5–40.5 meters), lifting heights (6–60 meters), and speeds.
Optional variable frequency drives (VFDs) for smooth acceleration and energy efficiency.
Safety & Control:
Overload protection, anti-collision systems, and emergency stops.
Operated via cabin, remote, or ground control.
| Parameter | Range/Details |
|---|---|
| Lifting Capacity | 5–550 tons (customizable dual-hook options) |
| Span | 10.5–40.5 meters (up to 50m for custom models) |
| Lifting Height | 6–60 meters (adjustable) |
| Lifting Speed | 0.63–63 m/min (VFD-controlled for precision) |
| Trolley Speed | 10–63 m/min |
| Crane Travel Speed | 16–110 m/min |
| Power Supply | 380V, 50Hz, 3-phase |
| Ambient Temperature | -20°C to +60°C |
Steel Mills: Handling molten metal, coils, and heavy machinery.
Ports & Shipyards: Loading/unloading containers and ship components.
Power Plants: Maintenance of turbines and generators.
Mining & Construction: Transporting raw materials and equipment.
Warehousing: Heavy-duty logistics in large storage facilities.
Durability: Robust construction withstands harsh environments (dust, humidity, high temperatures).

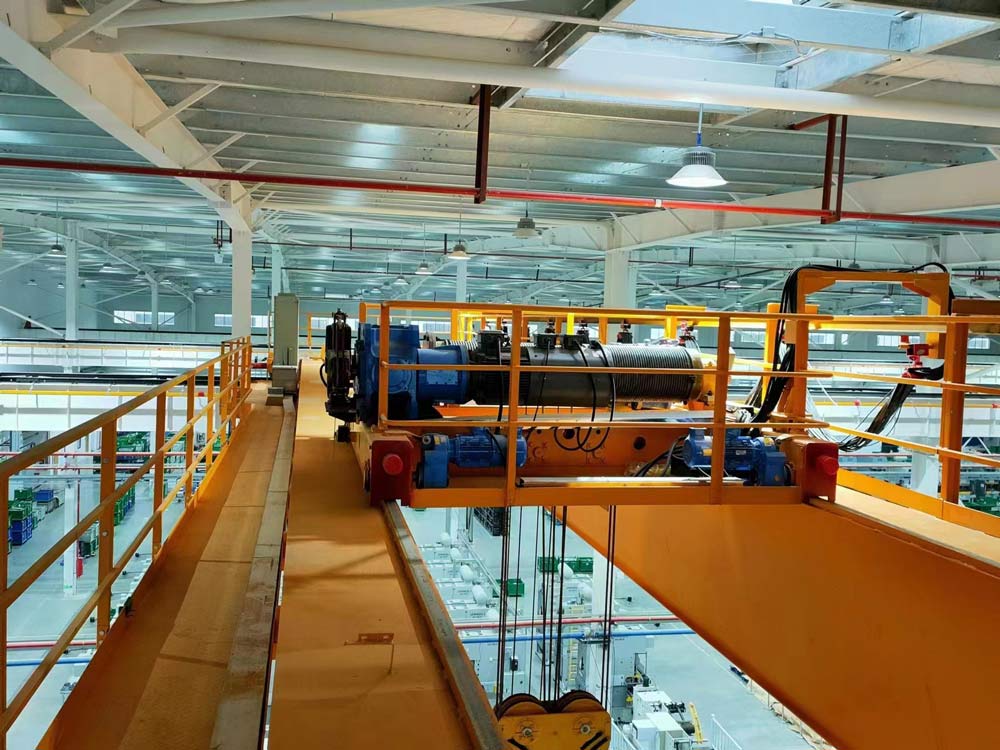

Precision Control: Winch trolley mechanism ensures accurate load positioning.
Cost Efficiency: Reduced maintenance and energy consumption compared to traditional cranes.
Flexibility: Configurable with specialized attachments (e.g., grabs, magnets).
The QD Overhead Crane is engineered for industries requiring high-frequency, heavy-capacity lifting in challenging environments. Its combination of durability, precision, and adaptability makes it ideal for steel mills, ports, and power plants. For lighter applications, LH cranes offer a more economical alternative.
Yes, because the working condition are different, all our products are customized depending on detail requirement! So all your products will be specially designed by our engineers according to your workshop conditions.
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,or you can let some third-partied to do the inspection for you.
Yes, we have. But we only have the standard-sized products, if you need customized products, then it will take some time to manufacture it.
It depends on your products quantity and products data you given, but we will try our best to deliver your products as soon as possible.
We will sent you the detail installation manual or if you are needing, our installation engineers can come to your workshop to guide the installation.
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
